jic 37º (sae j516)

jic 37º (sae j516)

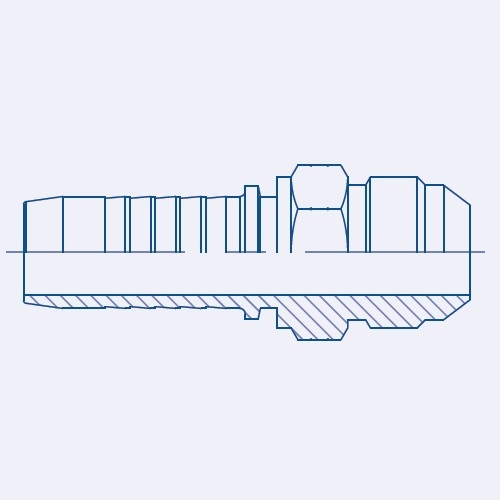

  (MJ) MACHO JIC

Codigo Medida Espiga Hilo (T) Corte (C) Hex (E)
CH.MJ.0404 04-04 1/4" 7/16 x 20 27mm 12mm
CH.MJ.0405 04-05 1/4" 1/2 x 20 27mm 14mm
CH.MJ.0406 04-06 1/4" 9/16 x 20 27mm 15mm
CH.MJ.0606 06-06 3/8" 9/16 x 20 27mm 15mm
CH.MJ.0608 06-08 3/8" 3/4 x 16 30mm 19mm
CH.MJ.0808 08-08 1/2" 3/4 x 16 31mm 19mm
CH.MJ.0810 08-10 1/2" 7/8 x 14 35mm 24mm
CH.MJ.1010 10-10 5/8" 7/8 x 14 35mm 24mm
CH.MJ.1012 10-12 5/8" 1.1/6 x 12 37mm 27mm
CH.MJ.1212 12-12 3/4" 1.1/6 x 12 38mm 27mm
CH.MJ.1216 12-16 3/4" 1.5/16 x 12 42mm 34mm
CH.MJ.1616 16-16 1" 1.5/16 x 12 43mm 34mm
CH.MJ.2020 20-20 1.1/4" 1.5/8 x 12 47mm 42mm
CH.MJ.2424 24-24 1.1/2" 1.7/8 x 12 52mm 50mm
CH.MJ.3232 32-32 2" 2.1/2 x 12 62mm 65mm



  (FJX) HEMBRA JIC

Codigo Medida Espiga Hilo (T) Corte (C) (A) Hex (E)
CH.FJX.0404 04-04 1/4" 7/16 x 20 14mm 8.5mm 15mm
CH.FJX.0405 04-05 1/4" 1/2 x 20 17mm 9.5mm 17mm
CH.FJX.0406 04-06 1/4" 9/16 x 20 17mm 9mm 19mm
CH.FJX.0604 06-04 3/8" 7/16 X 20 15mm 9mm 15mm
CH.FJX.0606 06-06 3/8" 9/16 x 20 16mm 9mm 19mm
CH.FJX.0608 06-08 3/8" 3/4 x 16 18mm 10.5mm 22mm
CH.FJX.0808 08-08 1/2" 3/4 x 16 18mm 10.5mm 24mm
CH.FJX.0810 08-10 1/2" 7/8 x 14 20mm 13mm 27mm
CH.FJX.0812 08-12 1/2" 1.1/6 x 12 20mm 13.5mm 32mm
CH.FJX.1010 10-10 5/8" 7/8 x 14 20mm 13mm 27mm
CH.FJX.1012 10-12 5/8" 1.1/6 x 12 20mm 13.5mm 32mm
CH.FJX.1212 12-12 3/4" 1.1/6 x 12 22mm 13.5mm 32mm
CH.FJX.1214 12-14 3/4" 1.3/16 x 12 23mm 14mm 36mm
CH.FJX.1216 12-16 3/4" 1.5/16 x 12 23mm 15.5mm 38mm
CH.FJX.1616 16-16 1" 1.5/16 x 12 24mm 15.5mm 38mm
CH.FJX.1620 16-20 1" 1.5/8 x 12 27mm 16.5mm 50mm
CH.FJX.2020 20-20 1.1/4" 1.5/8 x 12 28mm 16.5mm 50mm
CH.FJX.2024 20-24 1.1/4" 1.7/8 x 12 31mm 19mm 55mm
CH.FJX.2424 24-24 1.1/2" 1.7/8 x 12 31mm 19mm 55mm
CH.FJX.3232 32-32 2" 2.1/2 x 12 32mm 20mm 70mm

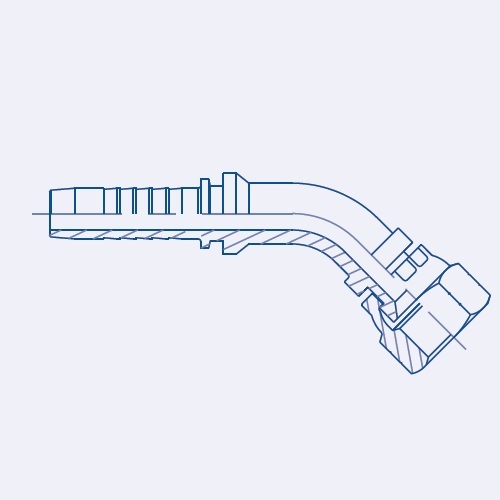

  (FJX 45°) HEMBRA JIC 45°

Codigo Medida Espiga Hilo (T) Corte (C) (H) Hex (E)
CH.FJX45.0404 04-04 1/4" 7/16 x 20 38mm 13mm 15mm
CH.FJX45.0405 04-05 1/4" 1/2 x 20 38mm 11mm 17mm
CH.FJX45.0406 04-06 1/4" 9/16 x 20 38mm 11mm 19mm
CH.FJX45.0606 06-06 3/8" 9/16 x 20 51mm 17mm 19mm
CH.FJX45.0608 06-08 3/8" 3/4 x 16 48mm 13mm 22mm
CH.FJX45.0808 08-08 1/2" 3/4 x 16 62mm 22mm 24mm
CH.FJX45.0810 08-10 1/2" 7/8 x 14 58mm 16mm 27mm
CH.FJX45.1010 10-10 5/8" 7/8 x 14 68mm 24mm 27mm
CH.FJX45.1012 10-12 5/8" 1.1/6 x 12 66mm 18mm 32mm
CH.FJX45.1212 12-12 3/4" 1.1/6 x 12 81mm 21mm 32mm
CH.FJX45.1216 12-16 3/4" 1.5/16 x 12 88mm 28mm 38mm
CH.FJX45.1616 16-16 1" 1.5/16 x 12 83mm 29mm 38mm
CH.FJX45.2020 20-20 1.1/4" 1.5/8 x 12 108mm 42mm 50mm
CH.FJX45.2424 24-24 1.1/2" 1.7/8 x 12 156mm 49mm 55mm
CH.FJX45.3232 32-32 2" 2.1/2 x 12 142mm 65mm 70mm

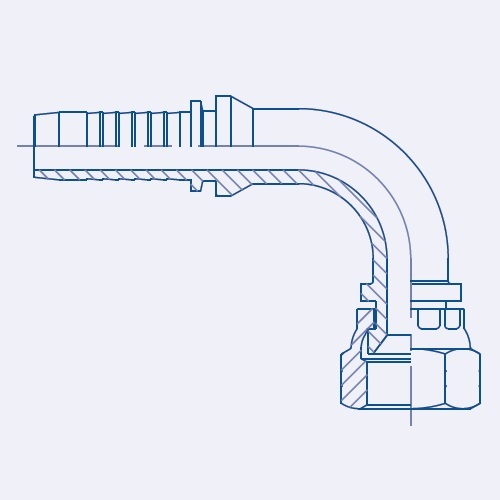

  (FJX 90°) HEMBRA JIC 90°

Codigo Medida Espiga Hilo (T) Corte (C) (H) Hex (E)
CH.FJX90.0404 04-04 1/4" 7/16 x 20 22mm 22mm 15mm
CH.FJX90.0405 04-05 1/4" 1/2 x 20 27mm 21mm 17mm
CH.FJX90.0406 04-06 1/4" 9/16 x 20 26mm 21mm 19mm
CH.FJX90.0606 06-06 3/8" 9/16 x 20 31mm 32mm 19mm
CH.FJX90.0608 06-08 3/8" 3/4 x 16 41mm 34mm 22mm
CH.FJX90.0808 08-08 1/2" 3/4 x 16 41mm 41mm 24mm
CH.FJX90.0810 08-10 1/2" 7/8 x 14 41mm 34mm 27mm
CH.FJX90.1010 10-10 5/8" 7/8 x 14 43mm 44mm 27mm
CH.FJX90.1012 10-12 5/8" 1.1/6 x 12 47mm 37mm 32mm
CH.FJX90.1212 12-12 3/4" 1.1/6 x 12 58mm 45mm 32mm
CH.FJX90.1216 12-16 3/4" 1.5/16 x 12 60mm 55mm 38mm
CH.FJX90.1616 16-16 1" 1.5/16 x 12 70mm 63mm 38mm
CH.FJX90.2020 20-20 1.1/4" 1.5/8 x 12 82mm 85mm 50mm
CH.FJX90.2424 24-24 1.1/2" 1.7/8 x 12 104mm 97mm 55mm
CH.FJX90.3232 32-32 2" 2.1/2 x 12 124mm 134mm 70mm

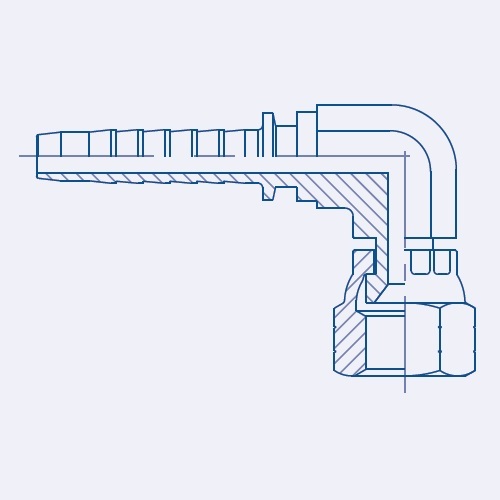

  (FJX 90° C) HEMBRA JIC 90° Compacto

Codigo Medida Espiga Hilo (T) Corte (C) (H) Hex (E) Hex2 (E1)
CH.FJX90C.0404 04-04 1/4" 7/16 x 20 19mm 17mm 15mm 15mm
CH.FJX90C.0606 06-06 3/8" 9/16 x 20 23mm 20mm 18mm 17mm
CH.FJX90C.0808 08-08 1/2" 3/4 x 16 26.5mm 22.5mm 24mm 22mm
CH.FJX90C.1212 12-12 3/4" 1.1/6 x 12 31.5mm 28.5mm 32mm 27mm
CH.FJX90C.1616 16-16 1" 1.5/16 x 12 37.5mm 33.5mm 38mm 32mm

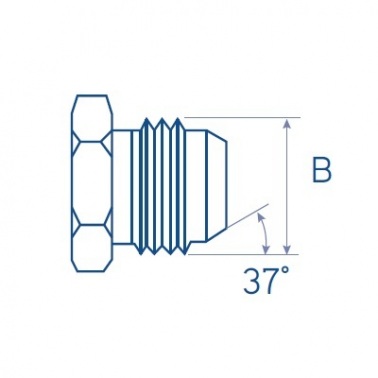

Es una de las conexiones más comunes de uso en los sistemas hidráulicos. Ambas conexiones macho y hembra poseen un asiento de 37°. El sello ocurre al entrar en contacto el cono macho y el abocinado cónico de 37° de la hembra
